Eaton Bussmann Series High Speed Fuses: Complete Product Range, Features and Selection Guide

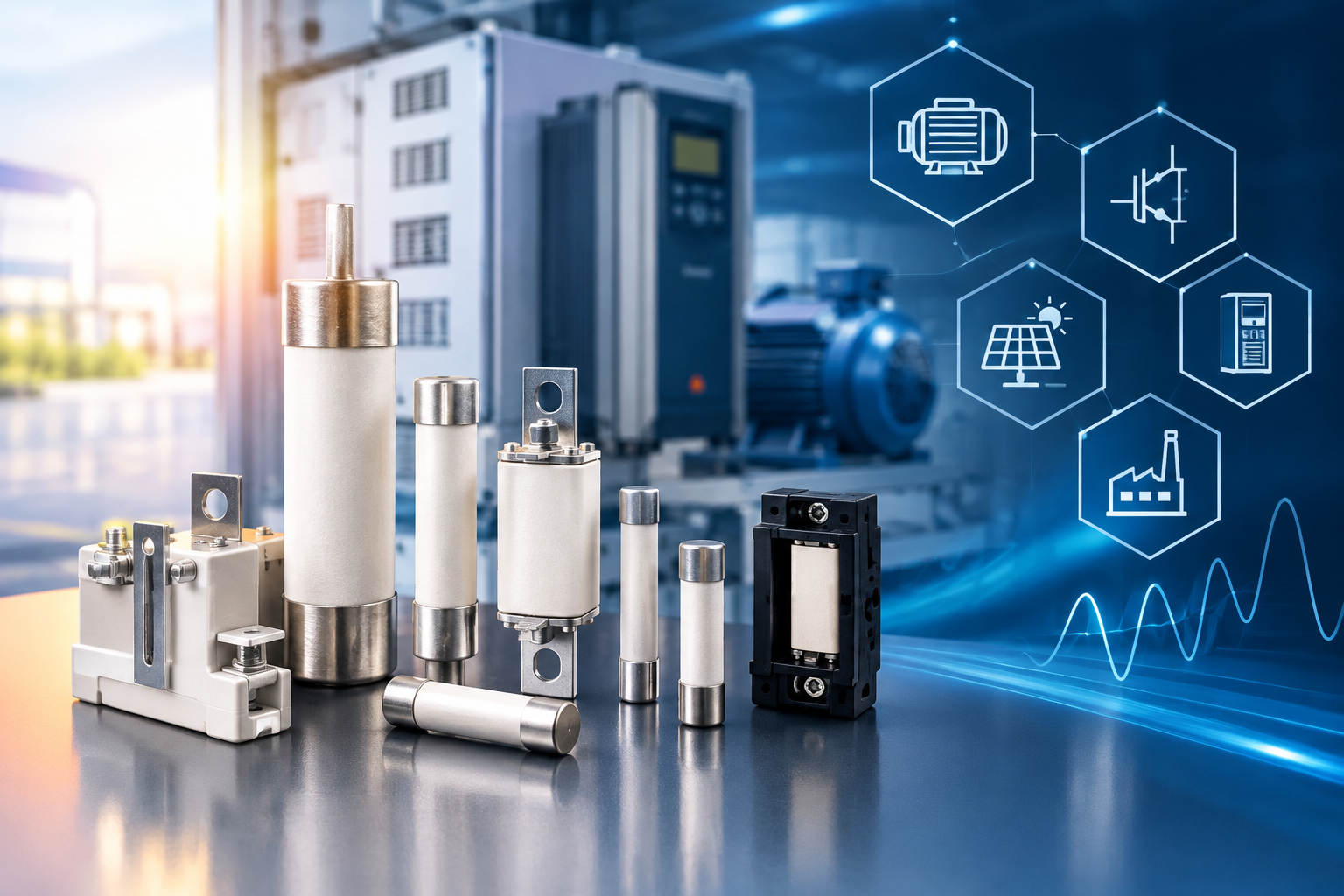

Introduction to Eaton Bussmann Series High Speed Fuses

High speed fuses play a critical role in protecting sensitive power electronics from short circuits and excessive fault currents. In industrial environments where power converters, motor drives, rectifiers and semiconductor devices operate under demanding conditions, selecting the right fuse is essential for equipment protection, system reliability and operational safety.

The Eaton Bussmann Series Full Line Catalog – High Speed Fuses provides a comprehensive overview of fuse solutions designed for a wide range of electrical protection applications. The catalog covers multiple fuse families, voltage ratings, current ratings, mounting configurations and accessories, helping engineers, electrical designers, maintenance professionals and procurement specialists identify suitable products for their systems.

Eaton Bussmann Series high speed fuses are designed for applications that require rapid fault-current interruption and protection of sensitive components, including power semiconductors and industrial power conversion equipment.

What Are High Speed Fuses?

High speed fuses, also known as semiconductor fuses, are specialized electrical protection devices designed to interrupt fault currents rapidly. Compared with general-purpose fuses, they are engineered to limit the energy that passes through a circuit during a fault, helping reduce the risk of damage to sensitive semiconductor components.

These fuses are commonly used to protect:

• Insulated-gate bipolar transistors (IGBTs)

• Power diodes and thyristors

• AC and DC motor drives

• Industrial rectifiers and inverters

• Power converters and DC common bus systems

• Semiconductor-based switching equipment

• Industrial automation and power control systems

A properly selected high speed fuse helps minimize fault energy and supports effective coordination between the fuse and the equipment it protects.

Overview of the Eaton Bussmann Series High Speed Fuse Catalog

The Eaton Bussmann Series Full Line Catalog, Section 4, focuses on high speed fuse products and related accessories. It includes solutions for North American applications, British Standard BS88 applications, ferrule-style installations and specialized semiconductor protection requirements.

The catalog organizes products by fuse family, voltage rating, current range and physical configuration. This makes it easier to compare available options and identify candidate products for a particular application.

1. Compact High Speed Fuses

Compact high speed fuses are designed for installations where panel space and enclosure dimensions are important considerations. Their compact form factor can help engineers optimize electrical cabinet layouts while maintaining appropriate circuit protection.

These products are particularly relevant to modern industrial equipment, where designers need to balance power density, thermal management and serviceability.

2. North American High Speed Fuses

The catalog includes several North American fuse families for different electrical ratings and installation requirements.

Examples include:

• FWA series: High speed fuse solutions available in multiple current ratings and configurations for DC bus systems, drives and power conversion equipment.

• FWX series: High speed fuses for selected AC and DC applications, including DC drives and rectifier protection.

• FWH series: Solutions for higher-voltage applications, with product options varying by current rating.

• FWP series: High speed fuses for selected 700 V AC/DC applications.

• FWJ series: Fuse options designed for applications with voltage ratings up to 1000 V AC and 800 V DC for specified models.

• KAC and KBC series: Additional fuse families listed for particular voltage and current requirements.

The precise ratings, dimensions, interrupting capacities and approvals depend on the individual product. Engineers should verify the applicable catalog data before specifying or ordering a fuse.

3. British Standard BS88 High Speed Fuses

The catalog also covers BS88-style high speed fuses for applications that use the relevant British Standard fuse formats.

Product families include CT, ET, FE, EET, FEE, FM, FMM, MT and MMT. These options support a variety of current ratings and electrical configurations for industrial power systems.

Typical applications include DC common bus protection, motor drives, power converters, rectifiers and reduced-rated-voltage starters.

The correct product must be selected according to the system voltage, current, available fault current, installation requirements and applicable standards.

4. Ferrule-Style High Speed Fuses

Ferrule-style high speed fuses provide a cylindrical form factor for compatible fuse holders and electrical assemblies. They are useful in installations where compact mounting and straightforward replacement are priorities.

The catalog includes ferrule fuse families such as FWA, FWH, FWC, FWL and FWS, each offering specific combinations of voltage ratings, current ratings and operating characteristics.

Depending on the family, these products may be suitable for applications involving DC common bus systems, power converters, rectifiers and semiconductor protection.

When selecting a ferrule fuse, it is important to verify the required fuse dimensions, holder compatibility, voltage rating, current rating and operating class.

5. High Speed Fuse Accessories

A complete fuse installation requires more than the fuse itself. The catalog includes accessories that support mounting, installation and fault indication.

Depending on the product family, available accessories may include:

• Fuse blocks and holders

• Mounting clips

• Visual indicators

• Microswitches and adapters

• Accessories for compatible square body fuses

Using compatible accessories helps support correct installation and can simplify maintenance. Accessory selection should be based on the exact fuse type and its physical and electrical requirements.

Key Technical Characteristics of High Speed Fuses

Understanding the principal electrical specifications is essential when choosing an Eaton Bussmann Series high speed fuse.

Voltage Rating

The fuse voltage rating must be suitable for the circuit in which it is installed. The catalog includes products for various AC and DC applications, with ratings that differ between individual fuse families and current ranges.

For DC applications, special attention is required because DC fault interruption differs from AC interruption. The specified DC voltage rating and interrupting capability must be suitable for the actual circuit.

Current Rating

The rated current indicates the nominal current for which a fuse is specified under defined conditions. The correct rating depends on the normal operating current, load characteristics, ambient conditions, cooling, installation arrangement and applicable derating requirements.

Choosing a fuse solely by matching the circuit's nominal current can result in inadequate protection or unwanted interruptions.

Breaking Capacity

Breaking capacity, also known as interrupting rating, describes the maximum fault current a fuse can safely interrupt under specified conditions.

The selected fuse must have an appropriate interrupting rating for the prospective short-circuit current at the installation point. Both the applicable voltage and the AC or DC characteristics must be considered.

Pre-Arcing and Clearing I²t

The I²t value represents the integral of current squared over time and is commonly used to characterize the thermal energy associated with fuse operation.

Two important values are:

• Pre-arcing I²t: The energy associated with the period before the fuse element begins to melt.

• Clearing I²t: The total energy let through until the fault current has been interrupted.

These values are particularly important for semiconductor protection because sensitive components can be damaged by excessive fault energy.

Engineers should compare the fuse characteristics with the withstand limits of the semiconductor device and the overall protection coordination requirements.

Power Loss

A fuse dissipates heat during normal operation. The catalog provides power-loss data for specified rated currents and products.

Power loss matters when designing compact enclosures, high-density electrical panels and systems with limited cooling capacity. The actual thermal performance depends on the installation conditions and operating current.

Operating Class

High speed fuse families may use different operating classifications, including aR and gR.

An aR fuse is generally intended for partial-range semiconductor protection, particularly against short-circuit currents. A gR fuse is a full-range fuse class intended to provide protection across a broader range of overcurrents, subject to its specified characteristics.

The appropriate class depends on the equipment design, overload protection strategy and coordination requirements.

How to Select the Right Eaton Bussmann High Speed Fuse

Selecting the correct high speed fuse requires a systematic evaluation of the electrical system and the equipment being protected.

Step 1: Identify the Application

Determine whether the fuse is intended for an inverter, rectifier, motor drive, IGBT module, DC bus or another power electronic application.

The application determines which fuse families and operating classes are appropriate candidates.

Step 2: Confirm the System Voltage

Establish the maximum operating voltage and whether the circuit is AC or DC. Confirm that the chosen fuse has a suitable voltage rating for the actual operating conditions.

For DC systems, do not assume that an AC voltage rating is equivalent to a DC rating.

Step 3: Determine the Required Current Rating

Calculate the expected operating current and consider load variation, startup conditions, ambient temperature and installation-related derating.

The fuse must carry normal operating current appropriately while meeting the required fault-protection characteristics.

Step 4: Evaluate Semiconductor Protection Requirements

For semiconductor applications, compare the fuse's pre-arcing and clearing I²t characteristics with the withstand characteristics of the device being protected.

Also evaluate the prospective fault current, clearing time and the manufacturer's coordination recommendations.

Step 5: Check Interrupting Capacity

Determine the prospective short-circuit current at the installation point. Verify that the selected fuse can interrupt the expected fault current at the relevant AC or DC voltage.

This is a critical part of ensuring that the protective device is suitable for the electrical system.

Step 6: Verify Mechanical Compatibility

Check fuse dimensions, mounting style, terminal configuration, holder compatibility and available enclosure space.

A fuse with suitable electrical characteristics may still be unsuitable if it cannot be installed correctly in the intended assembly.

Step 7: Review Standards and Approvals

Confirm that the selected product meets the applicable regulatory, installation and equipment requirements. Verify the exact approvals and ratings for the specific catalog number rather than assuming that every product in a family shares the same certifications.

Applications of Eaton Bussmann Series High Speed Fuses

High speed fuses are used across a broad range of industrial and electrical systems.

Industrial motor drives: Help protect power electronic components in drive circuits against damaging short-circuit currents.

Inverters and converters: Provide fast-acting protection for semiconductor devices used in power conversion.

Rectifier systems: Help protect power semiconductor components in AC-to-DC conversion equipment.

IGBT modules: Specialized fuse families are available for compatible IGBT inverter circuits, where low inductance and appropriate DC protection characteristics may be important.

DC common bus systems: Suitable fuse families can help protect shared DC power distribution circuits in industrial equipment.

Renewable energy and energy conversion equipment: High speed fuses may be used in suitable power conversion and control assemblies, provided the selected model meets the system's specific electrical and environmental requirements.

In every application, correct coordination between the fuse, semiconductor device and wider electrical protection system is essential.

Why Use the Eaton Bussmann Series Product Range?

The Eaton Bussmann Series high speed fuse portfolio offers engineers a range of product formats and electrical characteristics for different industrial protection needs.

Key considerations when evaluating the range include:

• Broad product selection: Multiple fuse families cover different current and voltage requirements.

• Application-specific designs: Product options are available for selected semiconductor, drive and power conversion applications.

• Technical selection data: Catalog tables provide important details such as current ratings, voltage ratings, I²t values, power loss and dimensions where specified.

• Installation flexibility: Different mounting formats and accessory options support a variety of equipment designs.

• Protection coordination: Detailed electrical characteristics help engineers assess the suitability of a fuse for a particular semiconductor or circuit protection task.

These advantages depend on choosing the appropriate product and following the manufacturer's technical requirements.

Frequently Asked Questions About High Speed Fuses

What is the purpose of a high speed fuse?

A high speed fuse is designed to interrupt excessive fault currents rapidly and limit the energy that passes through a circuit. It is commonly used to protect sensitive power semiconductor devices and industrial power conversion equipment.

Are high speed fuses the same as standard industrial fuses?

No. High speed fuses are specifically engineered for applications with particular fault-current and energy-limiting requirements, especially semiconductor protection. Standard industrial fuses may have different operating characteristics and may not provide the protection required by sensitive electronic components.

What does aR mean on a high speed fuse?

The aR classification generally identifies a partial-range semiconductor fuse intended primarily for short-circuit protection. Additional protection may be needed for overload conditions, depending on the equipment design.

How do I choose the correct fuse current rating?

Consider the normal operating current, load profile, ambient temperature, installation conditions, manufacturer's derating guidance and the protection requirements of the equipment. The current rating should not be selected in isolation from the fuse's time-current and I²t characteristics.

Why is I²t important for semiconductor protection?

I²t helps characterize the energy let through by a fuse during operation. Comparing the fuse's clearing I²t with the semiconductor's withstand characteristics helps determine whether the fuse can provide suitable protection under the specified fault conditions.

Can the same high speed fuse be used in AC and DC circuits?

Not necessarily. AC and DC interruption characteristics can differ significantly. The fuse must have an explicit rating appropriate to the circuit voltage, current type and expected fault conditions.

What should I check before ordering an Eaton Bussmann fuse?

Confirm the catalog number, voltage rating, current rating, interrupting capacity, operating class, I²t characteristics, dimensions, mounting arrangement and required approvals. Also verify that the selected fuse remains suitable under the actual operating and installation conditions.

Conclusion

The Eaton Bussmann Series Full Line Catalog for high speed fuses is a useful technical reference for engineers, electrical designers, maintenance teams and procurement professionals working with industrial power electronics.

Its coverage of compact high speed fuses, North American fuse families, BS88 products, ferrule-style fuses and accessories supports the evaluation of different protection requirements across industrial applications.

By carefully assessing voltage, current, interrupting capacity, I²t characteristics, operating class and mechanical compatibility, engineers can identify suitable fuse candidates for their equipment and develop a more effective protection strategy.

For reliable results, always verify the exact product specifications and applicable technical documentation before making a final selection. The referenced catalog is dated October 2018, so current product availability, ratings, approvals and replacement recommendations should be confirmed before purchase or design approval.
