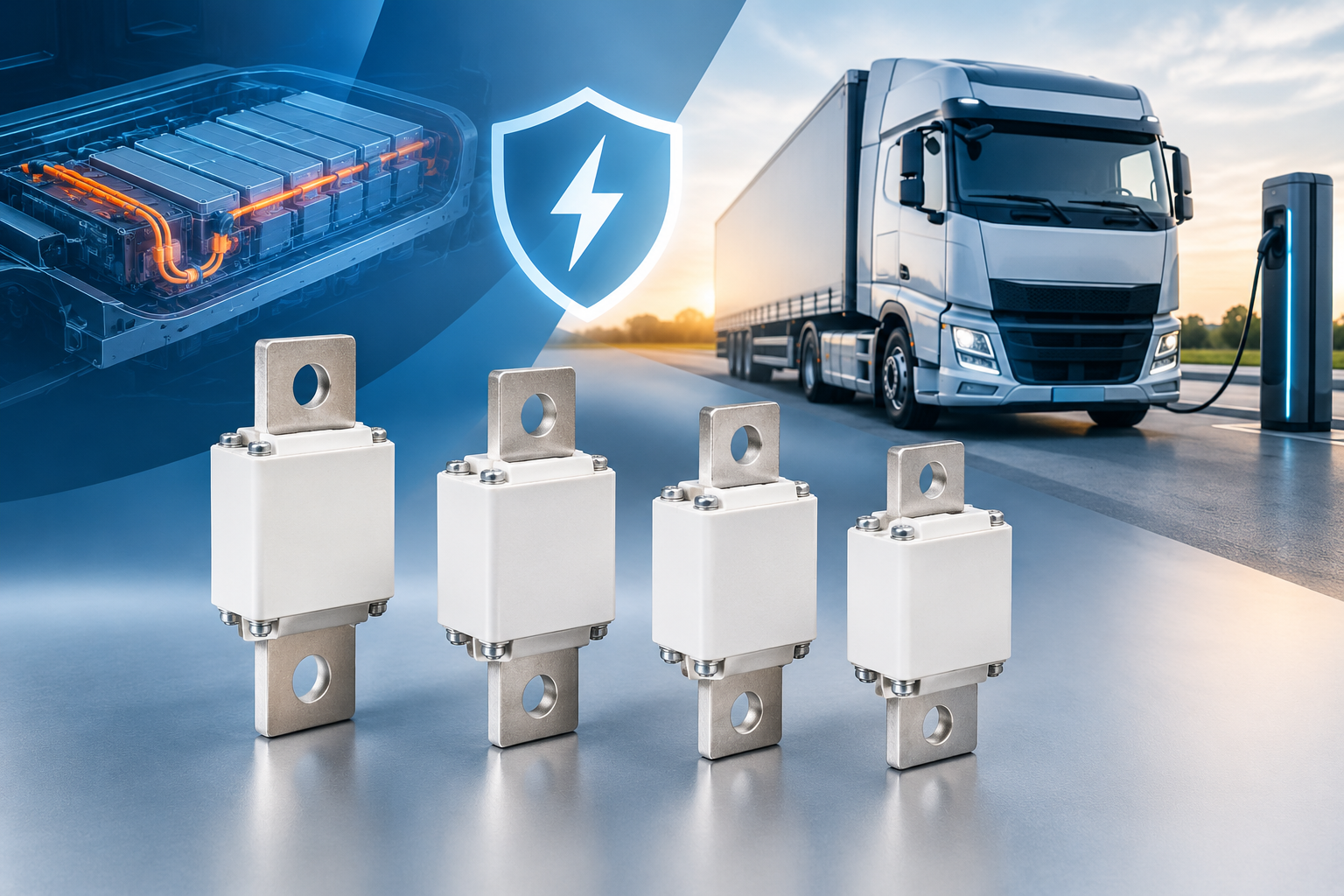

Eaton Bussmann EV Truck Square Fuses: High-Voltage Protection for Commercial Electric Vehicles

As the commercial vehicle industry transitions towards electrification, reliable high-voltage circuit protection is essential for electric trucks and other heavy-duty electric vehicles. Eaton Bussmann EV Truck square fuses are engineered to provide high-speed, high-voltage DC protection, helping safeguard critical electrical components against short-circuit currents while supporting the demanding operating conditions of commercial vehicles.

Designed with bolt-on M8 tags, high breaking capacity and low power dissipation, the Eaton Bussmann EVHD fuse range offers a practical solution for engineers and manufacturers developing high-voltage electrical systems for electric trucks.

Available in 600 A, 700 A, 800 A and 900 A ratings, these square-body fuses combine current-limiting performance with robust mechanical construction to meet the needs of modern electric commercial vehicle applications.

What Are Eaton Bussmann EV Truck Square Fuses?

Eaton Bussmann EV Truck square fuses are high-voltage DC fuses designed to protect electrical circuits in demanding electric vehicle environments. They are part of the EVHD fuse family and feature a compact square-body design with bolted M8 connections.

These fuses are intended to interrupt excessive fault currents rapidly, helping limit the energy that passes through a circuit during a short-circuit event. This is particularly important in electric trucks, where high-voltage battery systems and power distribution networks supply energy to critical components.

Their design combines several important characteristics:

• High-voltage DC protection: A rated breaking capability of 1,000 V DC under the specified 2 ms time constant conditions.

• High breaking capacity: A maximum breaking capacity of up to 100 kA.

• High-speed operation: Current-limiting performance helps reduce peak fault currents.

• Low power dissipation: Supports improved electrical efficiency.

• Bolt-on M8 connections: Designed to support secure installation and effective heat transfer.

• Heavy-duty construction: Engineered to withstand load cycling, thermal shock and specified commercial vehicle vibration conditions.

These characteristics make the EVHD series a relevant option for high-current protection in electric commercial vehicle electrical architectures, subject to application-specific validation.

Key Features and Benefits of Eaton Bussmann EVHD Square Fuses

1. High-Voltage DC Protection up to 1,000 V

Electric trucks rely on high-voltage DC electrical systems to deliver power efficiently. Protecting these systems requires fuses specifically designed to interrupt DC fault currents, where the absence of a natural current zero crossing can make fault interruption particularly challenging.

Eaton Bussmann EVHD square fuses have a specified breaking capability of 1,000 V DC under a 2 ms time constant (L/R) condition. This makes voltage and circuit time constant important considerations when selecting a suitable fuse.

The maximum breaking capacity is specified at 100 kA. This rating indicates the maximum fault current the fuse is designed to interrupt under its applicable test conditions.

Important: The minimum breaking capacity is currently listed as TBD and should be confirmed with the manufacturer before final design approval.

2. High-Speed Current Limitation

Short-circuit events in high-voltage electric vehicle systems can generate extremely high currents in a very short time. Without effective protection, these currents may damage contactors, conductors, power electronics and other connected components.

The Eaton Bussmann EVHD series is designed for high-speed operation with superior current-limiting performance under short-circuit conditions.

By limiting peak fault current, the fuse can help reduce electrical and thermal stress on downstream components, including system contactors. This can contribute to improved protection coordination and greater overall system reliability.

Engineers should assess the fuse's time-current characteristics and let-through energy against the specific requirements of the protected circuit.

3. Low Power Dissipation for Improved Efficiency

Efficiency is an important consideration in electric commercial vehicles, where energy consumption directly influences vehicle range and operating costs.

Eaton Bussmann EV Truck square fuses feature low power dissipation, helping minimise the energy converted into heat during normal operation.

Reduced heat generation can also support thermal management within compact electrical enclosures. However, actual power dissipation and temperature rise depend on the selected current rating, operating current, ambient temperature, mounting arrangement and surrounding thermal conditions.

For accurate system design, consult the relevant manufacturer's electrical characteristics and derating information.

4. Bolt-On M8 Tags for Secure Installation

Electrical connections are especially important in high-current applications. Poor contact quality or inadequate heat transfer can lead to excessive temperatures and compromise system performance.

The EVHD fuse family features bolted M8 tags designed to provide a practical mounting solution for high-current electric vehicle circuits.

The bolt-on design offers several benefits:

• Secure mechanical attachment.

• A connection arrangement suited to space-constrained electrical assemblies.

• Support for effective heat transfer through the mounting interface.

• Straightforward integration into compatible busbar and power distribution designs.

The specified tightening torque is 30 Nm with a locking nut. Installation should follow the manufacturer's instructions, including any requirements for mounting surfaces, hardware and connection preparation.

5. Designed for Commercial Vehicle Operating Conditions

Electric trucks operate in environments that can subject electrical components to repeated thermal and mechanical stress. Load cycling, temperature changes and vehicle vibration all influence the long-term reliability of high-current connections and protection devices.

Eaton Bussmann EVHD fuses are engineered to withstand load cycling, thermal shock and commercial vehicle vibration for parts attached to sprung masses, referencing ISO 16750-3:2012, Section 4.1.2.7, Test VII.

This design consideration is particularly relevant for components installed in vehicle-mounted electrical assemblies exposed to demanding operating conditions.

The applicable test scope and installation conditions should be checked against the manufacturer's documentation when validating a specific vehicle application.

6. Manufactured Under the IATF 16949 Quality System

Quality management is a key consideration for automotive and commercial vehicle component procurement.

The EVHD range is produced under the IATF 16949 quality system, supporting quality management practices for automotive production and relevant supply chains.

For vehicle manufacturers and system integrators, this provides important context when evaluating components for safety-critical electrical systems. Product suitability must still be established through the applicable technical documentation, component qualification and vehicle-level validation processes.

Eaton Bussmann EV Truck Square Fuse Technical Specifications

The following table summarises the technical information provided for the EVHD square fuse family.

Note: The 1,000 V DC specification is associated with the stated breaking conditions. Confirm rated operating voltage, current derating, interrupting characteristics and other application limits using the manufacturer's official datasheet.

Eaton Bussmann EVHD Square Fuse Models and Part Numbers

The Eaton Bussmann EV Truck square fuse range includes four current ratings, allowing engineers to select a model appropriate to the electrical system's requirements.

All four models share the listed storage temperature range of –40°C to +85°C and the specified tightening torque of 30 Nm with a locking nut.

Choosing the Right Current Rating

Selecting the correct fuse involves more than matching its nominal current rating to the normal operating current.

When comparing the 600 A, 700 A, 800 A and 900 A EVHD models, engineers should consider:

• Continuous operating current and expected load profile.

• Ambient temperature and enclosure thermal conditions.

• Conductor and busbar current-carrying capacity.

• Short-circuit current and available fault energy.

• Fuse time-current characteristics and let-through energy.

• Coordination with contactors, battery protection and other circuit protection devices.

• Applicable vehicle safety requirements and manufacturer recommendations.

A correctly selected fuse must support normal operation while providing appropriate protection under fault conditions. The final choice should be validated against the manufacturer's datasheet and the electrical system's design requirements.

Typical Applications for EV Truck Square Fuses

High-voltage DC fuses are important components in electric vehicle power distribution systems. Depending on the specific system design and the manufacturer's approved application guidance, Eaton Bussmann EVHD square fuses may be considered for protection in areas such as:

Electric Truck Battery Systems

High-current battery circuits require protection against dangerous short-circuit conditions. A suitable fuse can help interrupt fault currents before they cause extensive damage to cables, connections or surrounding components.

High-Voltage Power Distribution

Electric trucks distribute DC power between the battery and various electrical subsystems. Appropriately selected high-voltage fuses can provide localised circuit protection within compatible distribution architectures.

Commercial Vehicle Electrification

Heavy-duty electric vehicles place substantial demands on electrical components because of their high power requirements and challenging operating environments. A fuse designed for high-current DC applications can contribute to a robust electrical protection strategy.

Contactors and Power Electronics Protection

High-speed, current-limiting fuses can help reduce the peak current and energy experienced by contactors and other connected components during a short circuit.

The fuse must be coordinated with the protected equipment; it should not be assumed to protect every component under every fault condition without a detailed engineering assessment.

Installation and Handling Considerations

Correct installation is essential to achieving the intended electrical and thermal performance of a high-current fuse.

Before installing an Eaton Bussmann EVHD square fuse, consider the following:

1. Verify the part number: Confirm that the selected 600 A, 700 A, 800 A or 900 A model is suitable for the application.

2. Check the electrical ratings: Verify system voltage, available short-circuit current, breaking conditions and fuse coordination.

3. Inspect the mounting interface: Ensure the busbar and contact surfaces meet the manufacturer's installation requirements.

4. Use the specified hardware: The product information specifies bolted M8 tags and a tightening torque of 30 Nm with a locking nut.

5. Review thermal requirements: Check current derating, heat dissipation and enclosure temperature limits.

6. Follow safety procedures: Isolate the high-voltage system and follow the vehicle manufacturer's approved procedures before installation or maintenance.

The stated storage temperature range is –40°C to +85°C. Storage limits should not be interpreted as the allowable operating temperature range.

Why Choose Eaton Bussmann EVHD Square Fuses?

For engineers, commercial vehicle manufacturers and electrical system integrators, the Eaton Bussmann EVHD range offers a combination of electrical protection characteristics and installation features tailored to demanding high-current applications.

Key advantages include:

• High-voltage DC capability: Breaking performance specified for 1,000 V DC under defined conditions.

• High interrupting capacity: Maximum breaking capacity of 100 kA.

• Current-limiting protection: Designed to reduce peak fault currents and help protect connected equipment.

• Compact bolt-on design: M8 connections support integration into suitable high-current assemblies.

• Low power dissipation: Helps support efficient electrical system operation.

• Commercial vehicle durability considerations: Engineered for specified thermal and vibration challenges.

• Automotive quality management: Produced under the IATF 16949 quality system.

• Multiple current ratings: Four options from 600 A to 900 A.

These features make the series worth considering when designing or upgrading high-voltage electrical protection for electric trucks, subject to technical verification and application approval.

Frequently Asked Questions About Eaton Bussmann EV Truck Square Fuses

What current ratings are available?

The EVHD square fuse range covered here includes 600 A, 700 A, 800 A and 900 A models.

What is the maximum breaking capacity?

The specified maximum breaking capacity is 100 kA. Actual suitability depends on the system voltage, circuit time constant and the manufacturer's stated test conditions.

What voltage are these fuses designed for?

The provided technical information specifies 1,000 V DC breaking capability under a 2 ms time constant condition. Consult the official product documentation to confirm the rated operating voltage and application limits.

What type of connection do the fuses use?

The EVHD models use bolted M8 tags. The specified tightening torque is 30 Nm with a locking nut.

How much does an Eaton Bussmann EVHD square fuse weigh?

The approximate weight is 740 g per fuse across all four listed current ratings.

What is the operating temperature range?

The supplied specification identifies a storage temperature range of –40°C to +85°C. A separate operating temperature range should be confirmed from the manufacturer's datasheet.

What standards are referenced?

The product information references ISO 16750-3:2012 for the specified vibration test and states that the fuses are produced under the IATF 16949 quality system. The applicable test scope and product documentation should be verified for the intended application.

How many fuses are supplied per box?

The listed packaging quantity is three fuses per box.

Conclusion: High-Voltage Protection for Electric Commercial Vehicles

Eaton Bussmann EV Truck square fuses provide a high-current DC protection option for engineers developing electric truck and commercial vehicle electrical systems. With 600 A to 900 A current ratings, a maximum breaking capacity of 100 kA, bolt-on M8 connections and a design intended for demanding vehicle conditions, the EVHD family addresses several important requirements of high-voltage circuit protection.

For a successful installation, selecting the appropriate current rating is only the first step. Engineers must also evaluate the available fault current, breaking conditions, thermal performance, mounting requirements and coordination with other electrical components.
